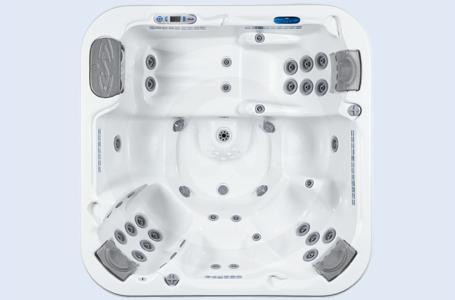

Dimension One Spas Chairman II
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

It is no wonder that the Chairman II continues to be a best-selling model, year after year. The Reflections' flagship comes fully-loaded with exclusive features such as the UltraLounge(R) with a programmable Dynamic Massage Sequencer, three patented NeckFlex Jet Pillows™, two powerful Hydra Max pumps, and over 50 jets. Contoured, multi-level seating that includes the wraparound MaxTherapy(TM) seat and a SportZone seat offers comfortable seating for six.

    General
    • Shape: Square
    • Seating Capacity: 6
    • Shell Material: Ultralife™ / Granitex™ / Geloy®
    • Dimensions: 92" x 92" x 35 1/2" H / (234cm X 234 cm x 90 cm H)
    • Corner Radii: 16 in. (41 cm)
    • Water Capacity: 400 Gallons (1514 Liters)
    • Dry Weight: 920 lbs (418 kg)
    • Shipping Weight: Domestic 920 lbs (418 kg) - Export 970 lbs (440 kg)
    • Full Weight: 4260 lbs (1933 kg)
    • Skirt Material: Domestic Synthetic - Export Wood or Synthetic
    • Poly Floor: Yes
    Water System
    • Water Treatment System: Ultra Pure™
    • Plumbing Systems: 4
    • Filters/Coverage: 2 / 75 sq. ft.
    • Gate Valves: 4
    • VCR Jet® - Air Adjustable/Directional: 8
    • VCR Jet® - Rotator: 12
    • VCR Jet® - Dual Rotator: 0
    • VCR Jet® - Multi Port Spinner: 0
    • VCR Jet® - Mini Rotator: 10
    • VCR Jet® - Mini Directional: 6
    • VCR Jet® - Euro Directional: 0
    • VCR Jet® - Euro Rotator: 0
    • VCR Jet® - Mini Directional in NFJ: 12
    • Typhoon Jet: 1
    • Ozone Jet: 1
    • Heater Return Jet: 1
    • Pump Returns: 4
    • Diverter Valves: 2
    • Floor Drains: 1
    • Skimmer: 8” Weir
    Special Features
    • Dynamic Massage Sequencer w/ control panel: Yes
    • NeckFlex® Jet Pillows: 3
    • Headrest Pillows: 0
    • Stereo system: Optional Poly-Planar
    • Water Feature: Optional with LFX package
    • Water Feature Volume control: Optional with LFX package
    • Cup Holders: 3
    • Tactile Therapy: Foot & hand
    Pump Information
    • Motor Size – Peak (Continuous) HP: 4.0 (2.5) Hp
    • Jet Pumps # of Pumps/Speed: Two / Dual
    Electrical System
    • Voltage: 240
    • Amperage: 50/40/30
    • Heater: FastFlo 2.7,4.0,5.5 kW
    • Thermostat: Electronic
    • Light: 1 with optional LED
    • Control System: MSPA-MP-D17-NON LFX, MSPA-MP-D18 LFX
    • Upper Control (programable): M-DRIVE with Scrolling Message Center
    • Auxiliary Upper Control: Yes

    Specifications

    Dimensions/Capacities
    Exterior Dimensions 91 ½"L x 91 ½"W x 35 ½"H
    Seating Positions 6
    Number of Jets 49
    Water Capacity 400 gal
    Weight, Dry 920 lbs
    Weight, Full 4260 lbs
    Electrical Requirements
    Motor/Pump 60 HZ (North America and Asia) : 2 x 4.0/(2.5) HP Dual Speed Pumps. 1 x Circulation Pump
    Heater FastFlo 2.7,4.0,5.5 kW
    General
    Lighting 1 with optional LED
    Color Jasper, Malibu Blue, Obsidian, Opal, Platinum, Sand, UltraLife™ Alpine
    Filtration System 2 / 75 sq. ft.
    Warranty Limited Warranty

    Compare Models

    		 Print








    Year 2009
    Manufacturer Dimension One
    Model Chairman II
    Style Above Ground
    MSRP* $14,995.00
    Dimensions/Capacities
    Exterior Dimensions 91 ½"L x 91 ½"W x 35 ½"H
    Seating Positions 6
    Number of Jets 49
    Water Capacity 400 gal
    Weight, Dry 920 lbs
    Weight, Full 4260 lbs
    Maximum Flow Rate
    Electrical Requirements
    Motor/Pump 60 HZ (North America and Asia) : 2 x 4.0/(2.5) HP Dual Speed Pumps. 1 x Circulation Pump
    Heater FastFlo 2.7,4.0,5.5 kW
    General
    Audio/Visual System
    Lighting 1 with optional LED
    Color Jasper, Malibu Blue, Obsidian, Opal, Platinum, Sand, UltraLife™ Alpine
    Filtration System 2 / 75 sq. ft.
    Warranty Limited Warranty
